The MCB Testing Machine

The MCB Testing machine tests the MCB for its critical parameters, especially the time for OVerload and Short circuit of any MCB. An MCB, or miniature circuit breaker, is an electrical safety device that protects electrical circuits from overloads and short circuits. MCBs are often used with inverters and UPSs to provide additional protection for these devices.

One of the most critical functions of an MCB in an inverter/UPS system is to trip at a specific time. This means that the MCB will automatically disconnect the power from the inverter/UPS if there is a fault, such as an overload or a short circuit. This helps prevent damage to the inverter/UPS and any connected equipment.https://suvastika.com/mcb-on-mains-bypass-load-in-inverter-ups/



In an inverter/UPS, an MCB is important for tripping in a specific time functionality. This is because an inverter/UPS is a device that converts DC power to AC power and can be susceptible to overloads and short circuits. If an overload or short circuit occurs, the MCB will trip and disconnect the power, preventing damage to the inverter/UPS and the connected equipment.

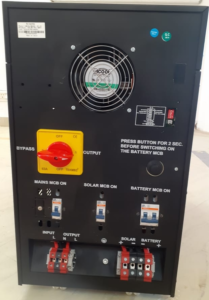

MCB in the Inverter/UPS MCB installed in UPS

The tripping time of an MCB is essential because it determines how quickly the MCB will trip in the event of an overload or short circuit. A shorter tripping time will help to protect the inverter/UPS and the connected equipment from damage.

The tripping time of an MCB is typically specified in seconds. A typical MCB for an inverter/UPS will have a tripping time of 15 to 45 seconds or more.http://www.tetraltd.com/product-MCB_Testing_Equipment-82.html

Here are some of the benefits of using an MCB in an inverter/UPS:

  • Overload protection: An MCB can help to protect an inverter/UPS from damage caused by an overload. An overload occurs when the current flowing through a circuit exceeds the circuit’s rated current. When an overload occurs, the MCB will trip and disconnect the power, preventing damage to the inverter/UPS.
  • Short circuit protection: An MCB can help protect an inverter/UPS from damage caused by a short circuit. A short circuit occurs when two conductors come into contact, creating a low-resistance path for current to flow. When a short circuit occurs, the MCB will trip and disconnect the power, preventing damage to the inverter/UPS.
  • Tripping at a specific time: An MCB can be configured to trip at a particular time, which can help protect the inverter/UPS and the connected equipment from damage. A shorter tripping time will help to prevent damage to the inverter/UPS and the related equipment.
  • MCB testing machine

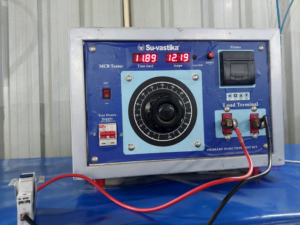

    MCB tester

    MCB testing machine printer.MCB testing machine demo



The tripping time of an MCB is usually specified in seconds. Specified tripping time will provide better protection for the inverter/UPS and connected equipment. However, if the tripping time varies, it can lead to nuisance tripping, which can be inconvenient and frustrating for the user as it keeps tripping the home or office power at a smaller overload while the power is available. If the time is increased, there can be a fire before the MCB trip in the Inverter/UPS.

Selecting an MCB with a tripping time that is appropriate for the application is essential. For example, an MCB that is used to protect a small inverter/UPS that is used for home use may not need to have as short a tripping time as an MCB that is used to protect a large inverter/UPS that is used in a commercial setting.

In addition to tripping in a specific time, MCBs also offer many other benefits, such as:

Overcurrent protection: An MCB will trip if the current flowing through it exceeds the rated current. This helps prevent damage to the inverter/UPS and any connected equipment.

Short circuit protection: An MCB will trip if there is a short circuit in the circuit. This helps prevent excessive current flow, which can damage the inverter/UPS and any connected equipment.

Overload protection: An MCB will trip if the current flowing through it exceeds the rated current for a sustained time. This helps prevent overheating the inverter/UPS and any connected equipment. https://suvastika.com/importance-of-mcb-in-inverter-ups-as-these-are-the-important-component-inside-the-inverter/

We designed our MCB TESTER in-house and made it essential for our IQC process for MCBs.

Since MCB is a mechanical device, it’s very tough for the manufacturer to maintain the timings of tripping on overload and short circuits.

Tripping time is the most critical parameter for our product functionality.

 Our RnD team made this MCB tester with a built-in printer so that the results are printed.

After installing this MCB testing Machine, our failure became zero, and the supplier became more conscious of supplying us with the MCB and started improving the quality. The supplier is pressured to maintain the quality of supplying to Su-vastika.
